HOME / POWER TOOLS / Drills, Screwdrivers & Impact Wrenches / Cordless drill /

Spare parts: Cordless drill MAKITA DDF486RFJ 18V. Size 1/2 inch (13 mm)

Brand : MAKITA

MAKITA

Loading
Loading....
MAKITA Genuine Parts
Need a new one?
Cordless drill MAKITA DDF486RFJ 18V. Size 1/2 inch (13 mm) Cordless drill MAKITA DDF486RFJ 18V. Size 1/2 inch (13 mm)
12,380 THB
Temporarily out of stock
Details
Full image

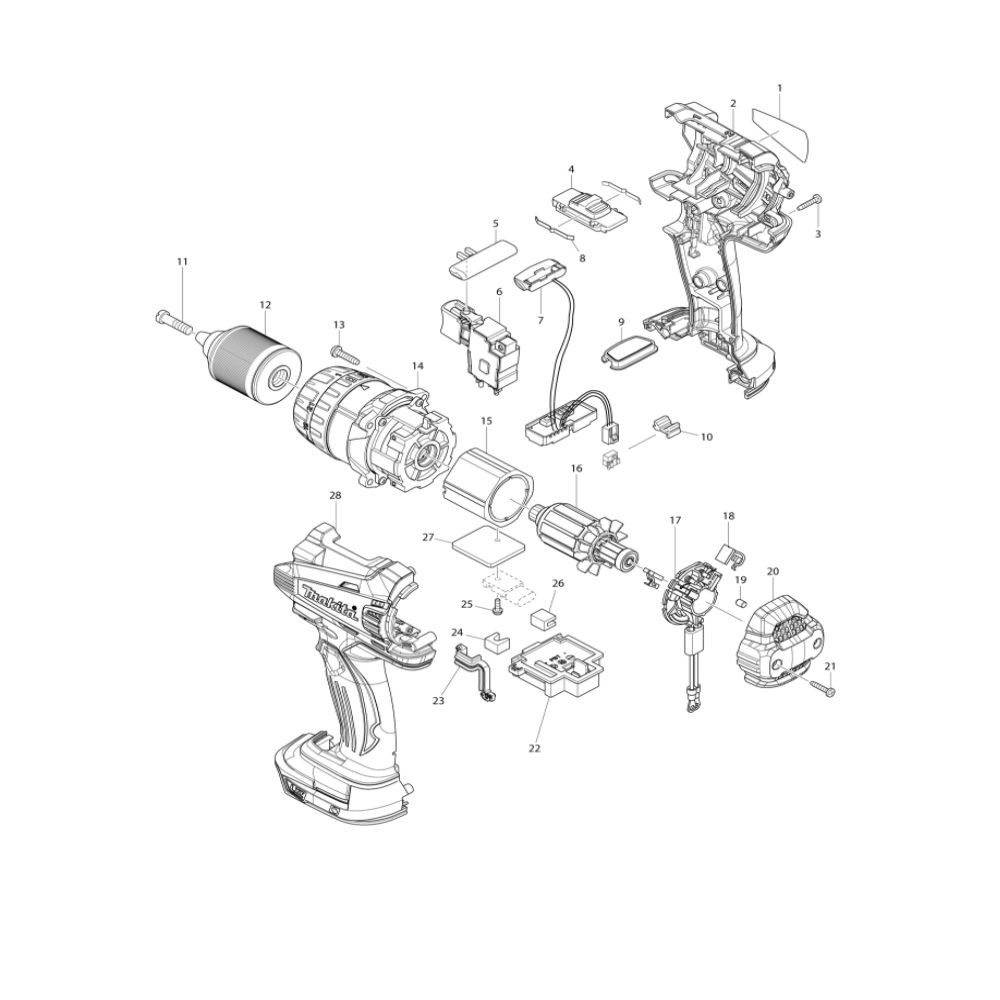

Parts diagram Cordless drill MAKITA DDF486RFJ 18V. Size 1/2 inch (13 mm)
Click a number to find the part · scroll on the diagram to zoom, drag to panTap a number to find the part · tap + to zoom, drag to pan No price yetNot listed Brand: MAKITA · View this machine
Parts 32 items
1
Name plate DDF486
811B51-8
Also fits: DDF486RTJ DDF486Z
20 THB
3
Housing set
183R83-4 · same part as # 20
300 THB
7
1,030 THB
8
Gear assembly
127699-7
Also fits: DDF486RTJ DDF486Z
2,180 THB
10
Rotor
619656-4 · same part as # 101
760 THB
11
3,020 THB
12
Rear cover
413405-9
80 THB
17
20 THB
20
Housing set
183R83-4 · same part as # 3
300 THB
31
Housing set
1831F6-2 · same part as # 201
Also fits: DDF486RTJ DDF486Z
No price yet
Ask for price
51
Speed change lever
4132E1-0
Also fits: DDF486RTJ DDF486Z
No price yet
Ask for price
81
Gear assembly
122B69-7
Also fits: DDF486RTJ DDF486Z
2,460 THB
82
Gear assembly
122F81-1
Also fits: DDF486RTJ DDF486Z
2,390 THB
83
Gear assembly
122H98-6
Also fits: DDF486RTJ DDF486Z
2,360 THB
101
Rotor
619656-4 · same part as # 10
760 THB
111
Stator complete
629B79-0
Also fits: DDF486RTJ DDF486Z
No price yet
Ask for price
112
3,090 THB
113
Stator complete
629C97-4
Also fits: DDF486RTJ DDF486Z
2,970 THB
114
Stator complete
629D26-3
Also fits: DDF486RTJ DDF486Z
3,020 THB
115
Stator complete
629D46-7
Also fits: DDF486RTJ DDF486Z
No price yet
Ask for price
201
Housing set
1831F6-2 · same part as # 31
Also fits: DDF486RTJ DDF486Z
No price yet
Ask for price
Specifications
System LXT 18V Li-ion
Max. Torque: 130 N·m
Chuck 1.5 mm - 13 mm
Speed settings 2 levels
Max speed 0 - 2100 RPM
Wood Drilling Capacity 50 mm
Steel Drilling Capacity 13 mm
Screw M6
Length 178 mm
Weight 2.6 kg
Steel, Wood 20, 76 mm
Max. Torque (N·m) 141
