Spare parts: Tile cutter MAKITA DCC500Z 18V. Size 5 inch BL MOTOR (Body only)

Brand : MAKITA

MAKITA

Loading
Loading....
MAKITA Genuine Parts
Need a new one?
Tile cutter MAKITA DCC500Z 18V. Size 5 inch BL MOTOR (Body only) Tile cutter MAKITA DCC500Z 18V. Size 5 inch BL MOTOR (Body only)
6,260 THB
Online stock · ships in 1-3 days
Details
Full image

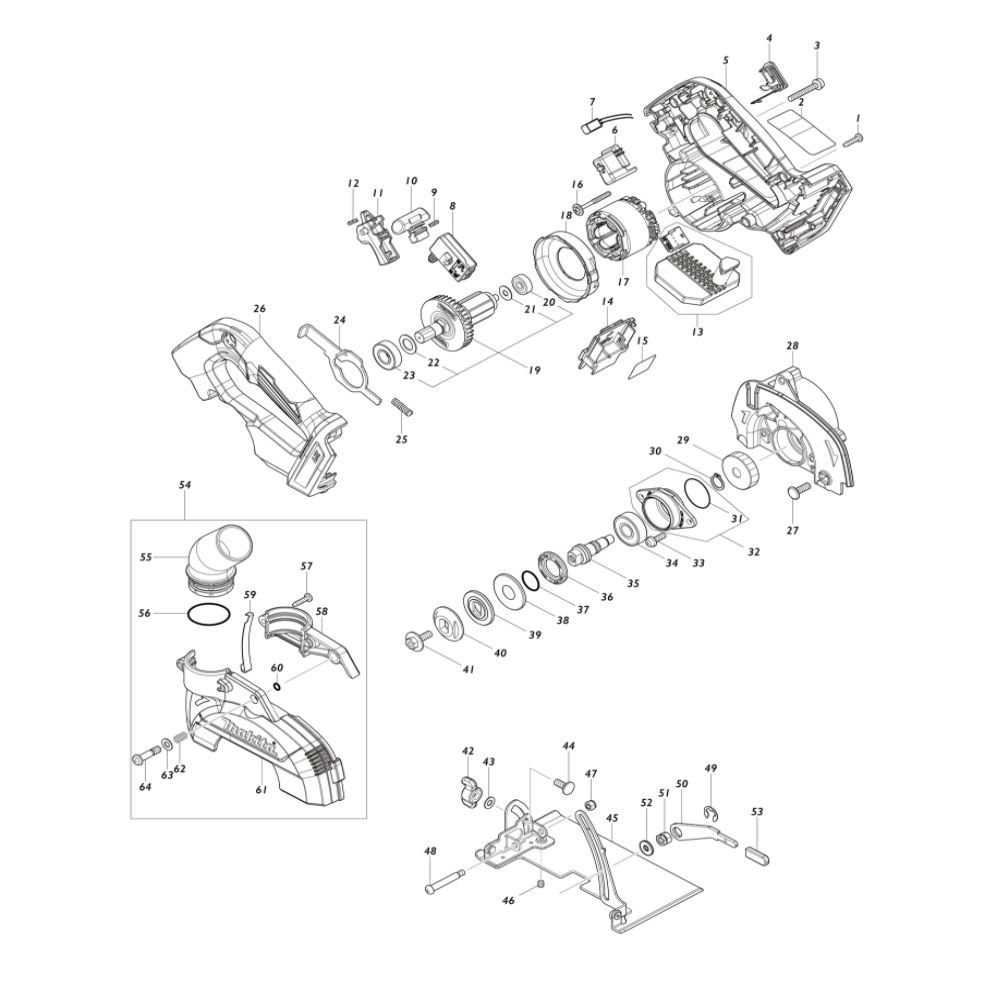

Parts diagram Tile cutter MAKITA DCC500Z 18V. Size 5 inch BL MOTOR (Body only)
Click a number to find the part · scroll on the diagram to zoom, drag to panTap a number to find the part · tap + to zoom, drag to pan No price yetNot listed Brand: MAKITA · View this machine
Parts 71 items
2
Name plate DCC500
858D79-7
Also fits: DCC500RTJ
20 THB
5
310 THB
6
Holder
459256-6
40 THB
10
30 THB
11
50 THB
13
Controller
620E44-0
Also fits: DCC500RTJ DCC501ZX2
2,460 THB
15
Serial No. label DCC500
858D86-0
Also fits: DCC500RTJ
20 THB
16
20 THB
17
Stator
629A39-6
Also fits: DCC500RTJ DCC501ZX2
980 THB
18
Baffle plate
413291-8
Also fits: DCC500RTJ DCC501ZX2
60 THB
19
Rotor assembly
519665-2
Also fits: DCC500RTJ DCC501ZX2
1,030 THB
24
Shaft lock
347785-0
Also fits: DCC500RTJ DCC501ZX2
80 THB
25
20 THB
26
190 THB
27
20 THB
28
660 THB
29
Helical gear 45
227855-0
Also fits: DCC500RTJ DCC501ZX2
120 THB
31
20 THB
32
Bearing box assembly
135948-8 · same part as # 321
Also fits: DCC500RTJ DCC501ZX2
150 THB
35
Spindle
325603-2
160 THB
36
50 THB
37
60 THB
38
Cup washer 15
253397-8
Also fits: DCC500RTJ DCC501ZX2
30 THB
39
120 THB
40
120 THB
42
40 THB
44
20 THB
45
Base
162951-6
Also fits: DCC500RTJ DCC501ZX2
230 THB
48
20 THB
49
20 THB
50
Lever plate
347399-5
40 THB
51
350 THB
51
20 THB
53
Cap
286036-5
20 THB
54
Dust cover assembly A
127750-3
Also fits: DCC500RTJ
510 THB
55
Elbow
416741-2
Also fits: DCC500RTJ SG1251
240 THB
58
Dust cover R
413294-2
Also fits: DCC500RTJ
50 THB
59
Plate
347787-6
Also fits: DCC500RTJ
50 THB
60
20 THB
61
Dust cover L
413292-6
Also fits: DCC500RTJ
290 THB
62
60 THB
64
20 THB
131
Controller
620L79-3
Also fits: DCC500RTJ DCC501ZX2
2,920 THB
171
400 THB
261
230 THB
321
Bearing box assembly
135948-8 · same part as # 32
Also fits: DCC500RTJ DCC501ZX2
150 THB
Specifications
Voltage 18 v
Blade diameter 125 mm
Max. cutting capacity at 0º 40 mm
Max. Cutting Capacity at 45º 27 mm
Bore diameter 20 mm
Rotational Speed 8,800 RPM
Vibration K Factor 1.5 m/s²
Vibration level: cutting concrete 4.0 m/s²
Net weight 2.5 - 3.0 kg
