HOME / POWER TOOLS / Drills, Screwdrivers & Impact Wrenches / Angle drills /

Spare parts: Cordless drill screwdriver MAKITA model DDA450ZK 36V. 13 mm (solo)

Brand : MAKITA

MAKITA

Loading
Loading....
MAKITA Genuine Parts
Need a new one?
Cordless drill screwdriver MAKITA model DDA450ZK 36V. 13 mm (solo) Cordless drill screwdriver MAKITA model DDA450ZK 36V. 13 mm (solo)
9,170 THB
Online stock · ships in 1-3 days
Details
Full image

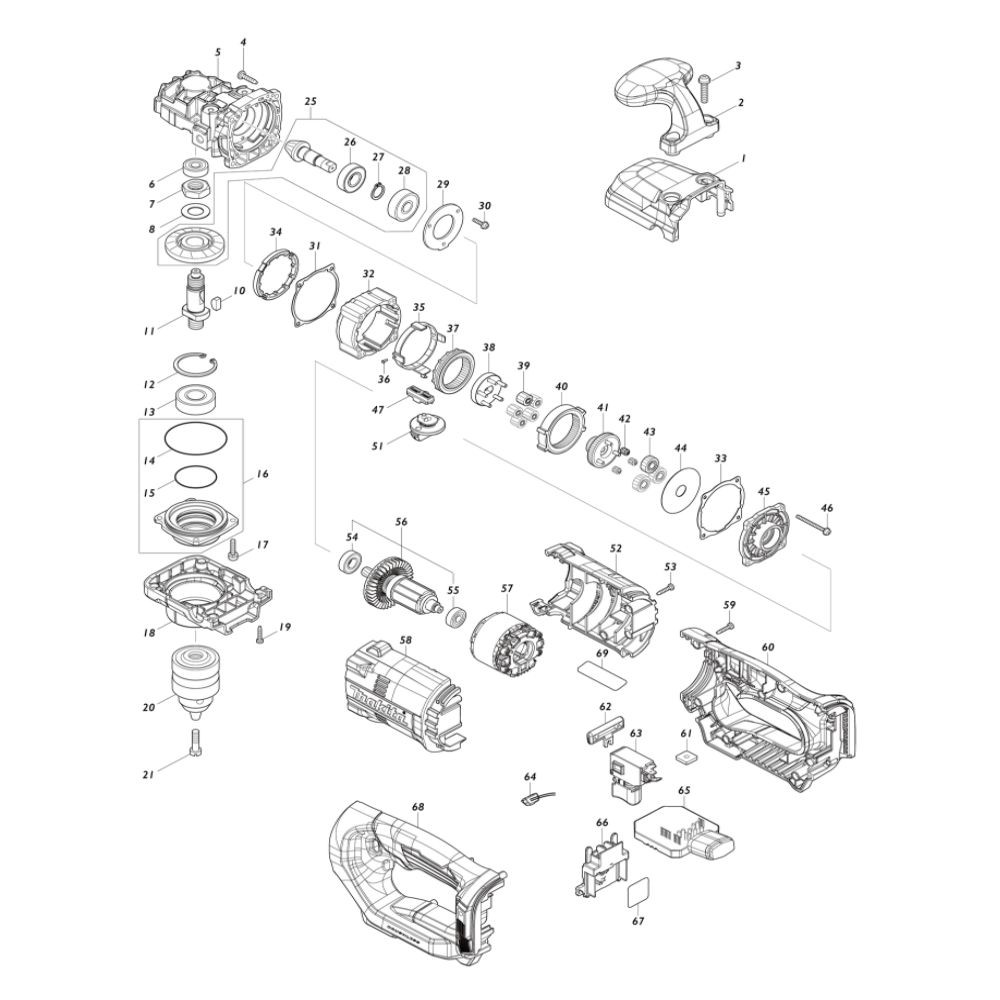

Parts diagram Cordless drill screwdriver MAKITA model DDA450ZK 36V. 13 mm (solo)
Click a number to find the part · scroll on the diagram to zoom, drag to panTap a number to find the part · tap + to zoom, drag to pan No price yetNot listed Brand: MAKITA · View this machine
Parts 67 items
1
Cover set
183S72-5 · same part as # 18
210 THB
2
Front handle
413433-4
130 THB
5
Gear housing
312B07-9
1,330 THB
7
Hex. nut M14
252299-5
100 THB
8
Flat washer 14
253536-0
40 THB
10
60 THB
11
Spindle
327774-1
590 THB
15
O-ring 35
213A04-1
No price yet
Ask for price
16
300 THB
18
Cover set
183S72-5 · same part as # 1
210 THB
20
Drill chuck 13
763183-4
1,120 THB
21
50 THB
25
830 THB
28
Ball bearing 6200ZZ
211067-5
Also fits: 1804N 1805N EN410MP
210 THB
29
50 THB
30
Pan head screw M3X12 WR
911018-5
Also fits: BO6030
20 THB
31
Gasket A
422683-0
80 THB
32
Gear case
413437-6
100 THB
33
Gasket B
422684-8
80 THB
34
Speed change cam
313367-0
70 THB
35
60 THB
36
Pin 1.4
256952-5
30 THB
37
90 THB
38
Carrier complete
141A18-9
90 THB
39
Spur gear 13
227880-1
30 THB
40
160 THB
41
120 THB
42
Needle cage 307
212131-5
Also fits: DSL800DZ DSL801Z
70 THB
43
Spur gear 25
227877-0
30 THB
44
Flat washer 12
253493-2
50 THB
45
Motor bracket
413438-4
90 THB
46
Pan head screw M3X35 WR
911063-0
Also fits: 2711
30 THB
47
Change lever assembly
127066-6
Also fits: DUT130
50 THB
51
Speed change lever assembly
127282-0
Also fits: DUT130
290 THB
52
Motor housing set
183S73-3 · same part as # 58
260 THB
56
Rotor assembly
519688-0
920 THB
57
Stator
629A60-5
980 THB
58
Motor housing set
183S73-3 · same part as # 52
260 THB
60
Handle set
183S70-9 · same part as # 68
500 THB
64
230 THB
65
Controller
620F07-2
2,360 THB
67
20 THB
68
Handle set
183S70-9 · same part as # 60
500 THB
151
O-ring 35
213343-3
Also fits: DTM51Z DTM53Z FS2700 TM3010CX10
30 THB
161
290 THB
571
400 THB
651
Controller
620L80-8
2,600 THB
Specifications
Voltage 18V
Drilling Capacity 13mm
Steel Drilling Capacity 13mm
Wood Drilling Capacity 38mm
Max fastening torque High: 26 N·m | Low: 70 N·m
Overall Dimensions 434mm
Net weight 2.9 kg
Capacity เหล็ก : 13 มม. / ไม้ : 50 มม.
No-load speed (RPM) High : 0 - 1,400 / Low : 0 - 450
