HOME / POWER TOOLS / Machinery Industry and Construction / Rebar Tying Tools /

Spare parts: CORDLESS REBAR TRYING TOOL Makita dtr181z (SOLO)

Brand : MAKITA

MAKITA

Loading
Loading....
MAKITA Genuine Parts
Need a new one?
CORDLESS REBAR TRYING TOOL Makita dtr181z (SOLO) CORDLESS REBAR TRYING TOOL Makita dtr181z (SOLO)
21,530 THB
Online stock · ships in 1-3 days
Details
Full image
Parts diagram CORDLESS REBAR TRYING TOOL Makita dtr181z (SOLO)
Click a number to find the part · scroll on the diagram to zoom, drag to panTap a number to find the part · tap + to zoom, drag to pan No price yetNot listed Brand: MAKITA · View this machine
Parts 102 items

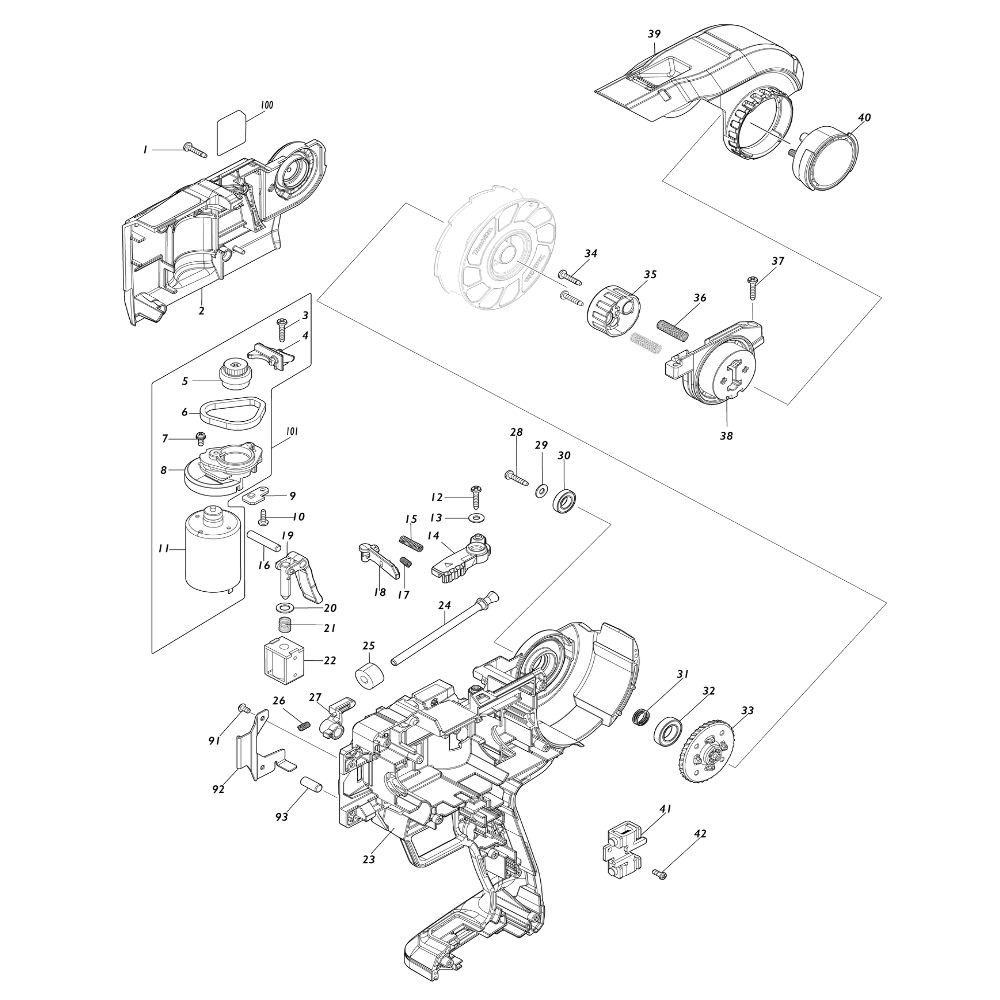

Diagram 1 46 items
2
590 THB
4
Wire guide A
310864-7
Also fits: DTR181RTE DTR180Z
340 THB
5
1,040 THB
6
Sponge sheet A
422247-0
Also fits: DTR181RTE DTR180Z
30 THB
7
20 THB
8
Motor base
458222-0
Also fits: DTR181RTE DTR180Z
170 THB
9
Sensor circuit
620913-5 · same part as # 46
Also fits: DTR181RTE DTR180Z
550 THB
11
DC motor
629346-1
Also fits: DTR181RTE DTR180Z
1,030 THB
14
1,120 THB
15
Compression spring 3
232443-0
Also fits: DTR181RTE DTR180Z
50 THB
16
Pin 5
256098-7
60 THB
17
Compression spring 3
232442-2 · same part as # 26
Also fits: DTR181RTE DTR180Z
60 THB
18
Lock lever
458223-8
Also fits: DTR181RTE DTR180Z
100 THB
19
Brake arm complete
140A85-1 · same part as # 191
Also fits: DTR181RTE DTR180Z
680 THB
21
Compression spring 7
232446-4
Also fits: DTR181RTE DTR180Z
50 THB
22
Solenoid
679032-4
Also fits: DTR181RTE DTR180Z
830 THB
23
Housing set
183W01-2 · same part as # 54
Also fits: DTR181RTE DTR180Z
1,710 THB
24
170 THB
25
Sponge sheet B
422249-6
Also fits: DTR181RTE DTR180Z
20 THB
26
Compression spring 3
232442-2 · same part as # 17
Also fits: DTR181RTE DTR180Z
60 THB
27
Magnet arm complete
144901-3
Also fits: DTR181RTE DTR180Z
200 THB
30
Ball bearing 689
211478-4
Also fits: DTR181RTE DTR180Z
180 THB
31
40 THB
32
Ball bearing 6801LLB
211136-2
Also fits: DTR181RTE DTR180Z
240 THB
33
310 THB
35
Reel bearing
319822-0
Also fits: DTR181RTE DTR180Z
350 THB
36
50 THB
38
Reel base
458225-4
Also fits: DTR181RTE DTR180Z
190 THB
39
Reel cover
458216-5
Also fits: DTR181RTE DTR180Z
330 THB
40
Reel bearing cam
458221-2
Also fits: DTR181RTE DTR180Z
190 THB
41
Stopper assembly
126743-7
Also fits: DTR181RTE DTR180Z
1,310 THB
42
30 THB
91
Hex. socket button head bolt M3X6
265635-6 · same part as # 86, 99
Also fits: DTR181RTE DTR180Z
40 THB
92
Side plate R
347813-1
Also fits: DTR181RTE
300 THB
93
Rubber pin 6
263040-1 · same part as # 97
Also fits: DTR181RTE DTR180Z
80 THB
101
DC motor assembly
135999-1
Also fits: DTR181RTE DTR180Z
2,680 THB

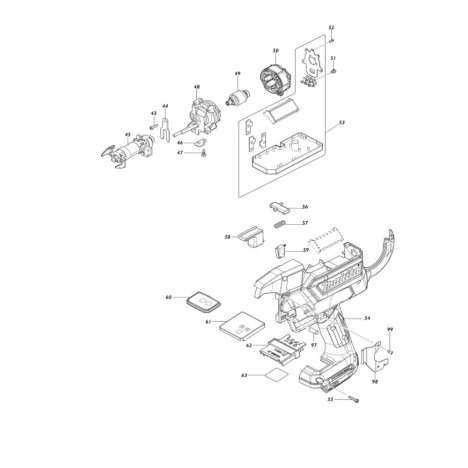

Diagram 2 22 items
44
Bearing retainer
310866-3
Also fits: DTR181RTE DTR180Z
120 THB
45
Main sleeve complete
141D23-4
Also fits: DTR181RTE DTR180Z
4,560 THB
46
Sensor circuit
620913-5 · same part as # 9
Also fits: DTR181RTE DTR180Z
550 THB
48
Gear assembly
126838-6
Also fits: DTR181RTE DTR180Z
1,560 THB
49
Rotor
619520-9
Also fits: DTR181RTE DTR180Z
1,410 THB
50
Stator
629343-7
Also fits: DTR181RTE DTR180Z
390 THB
53
Main controller complete
140X54-0
Also fits: DTR181RTE
7,550 THB
54
Housing set
183W01-2 · same part as # 23
Also fits: DTR181RTE DTR180Z
1,710 THB
56
Trigger lock
458219-9
100 THB
57
40 THB
58
Trigger
458220-4
100 THB
59
Switch unit
632L94-5
360 THB
60
230 THB
61
Switch circuit
620924-0
Also fits: DTR181RTE DTR180Z
1,570 THB
97
Rubber pin 6
263040-1 · same part as # 93
Also fits: DTR181RTE DTR180Z
80 THB
98
Side plate L
347812-3
Also fits: DTR181RTE
300 THB
99
Hex. socket button head bolt M3X6
265635-6 · same part as # 86, 91
Also fits: DTR181RTE DTR180Z
40 THB

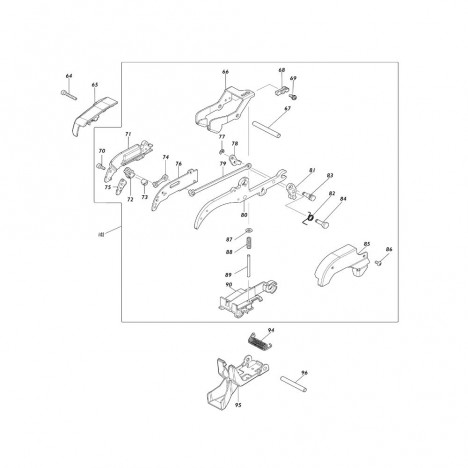

Diagram 3 31 items
64
20 THB
65
Contact plate cover
458217-3
Also fits: DTR181RTE DTR180Z
210 THB
66
Contact plate
347831-9
730 THB
67
Pin 5
256573-3 · same part as # 96
30 THB
68
210 THB
69
20 THB
70
20 THB
71
Wire guide B complete
162945-1
Also fits: DTR181RTE
3,390 THB
72
Cutter B
310815-0
Also fits: DTR181RTE DTR180Z
420 THB
73
Cutter A
310814-2
Also fits: DTR181RTE DTR180Z
360 THB
74
Link arm A complete
161872-9
Also fits: DTR181RTE DTR180Z
350 THB
75
Top plate
347773-7
Also fits: DTR181RTE
410 THB
76
Guide plate A
347772-9
Also fits: DTR181RTE
660 THB
78
Pull plate
347720-8
Also fits: DTR181RTE DTR180Z
150 THB
79
Link arm B complete
162943-5
Also fits: DTR181RTE
450 THB
80
Guide arm A
347770-3
Also fits: DTR181RTE
2,310 THB
81
Push plate
347329-6
Also fits: DTR181RTE DTR180Z
180 THB
82
Torsion spring 7
232445-6
Also fits: DTR181RTE DTR180Z
20 THB
83
Shoulder pin 4
256400-4
Also fits: DTR181RTE DTR180Z
40 THB
84
Shoulder pin 4
256399-3
Also fits: DTR181RTE DTR180Z
40 THB
85
Guide plate B
347771-1
Also fits: DTR181RTE
610 THB
86
Hex. socket button head bolt M3X6
265635-6 · same part as # 91, 99
Also fits: DTR181RTE DTR180Z
40 THB
87
Flat washer 3
941001-8
Also fits: DTR181RTE DTR180Z
20 THB
88
20 THB
89
Pin 3
256390-1
Also fits: DTR181RTE DTR180Z
130 THB
90
Lead holder
458226-2
Also fits: DTR181RTE DTR180Z
150 THB
94
Torsion spring 6
232448-0
Also fits: DTR181RTE DTR180Z
50 THB
95
Curl guide complete
162946-9
Also fits: DTR181RTE
1,760 THB
96
Pin 5
256573-3 · same part as # 67
30 THB
102
Guide arm assembly
136447-3
Also fits: DTR181RTE
9,850 THB
Other 3 items
191
Brake arm complete
140A85-1 · same part as # 19
Also fits: DTR181RTE DTR180Z
680 THB
711
Wire guide B complete
141S52-7
Also fits: DTR181RTE
3,010 THB
1021
Guide arm assembly
136948-1
Also fits: DTR181RTE
9,020 THB
Specifications
Power 18 V
Noise level 82 dB(A)
Vibration 2.5 m/s²
Dimensions 304x93x318 mm
Applicable Wire Size Annealed wire Ø 0,8 mm
Weight 2.7 kg.
Applicable Rebar D16 x D16 - [D13 x 2] x [D16 x 2]
Tie Wire (Annealed Wire) 21 Ga (0.8 mm)
Tie wire (galvanized wire) 21 Ga (0.8 mm)
Tie wire (poly-coated wire) 20 Ga (0.9 mm)
