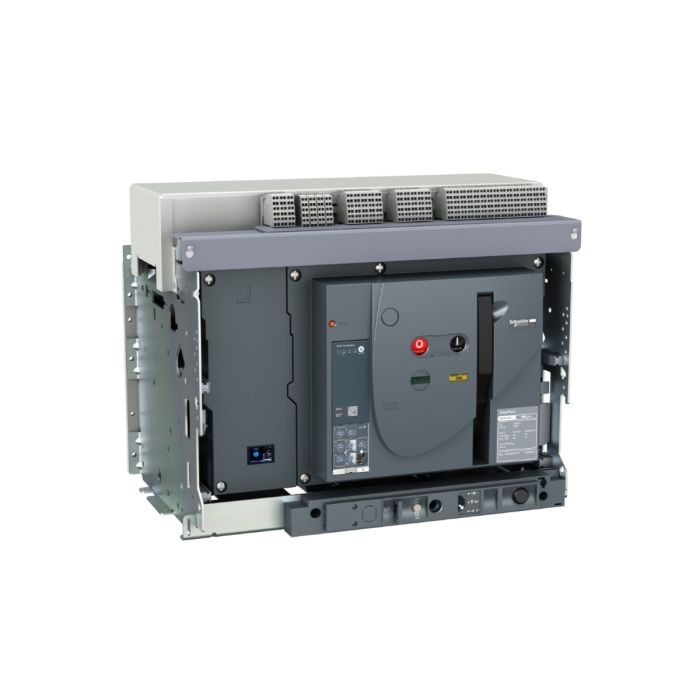

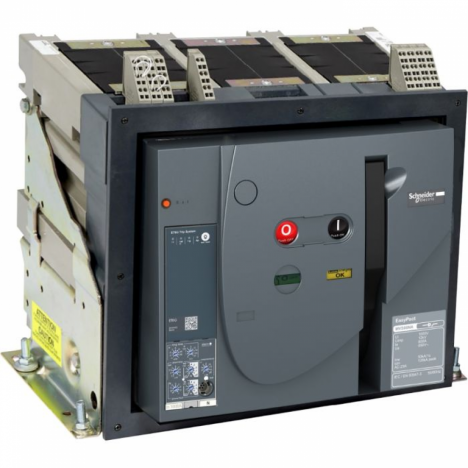

SCHNEIDER MVS20N3MW6A Air Circuit Breaker (ACB) 2000A 50 kA

234-MVS20N3MW6A

112,930 Baht

SCHNEIDER ELECTRIC SKU 234-MVS20N3MW6A ⧉
~ Installment 12,260 Baht / month × 10
In stock
Out of stock

Price 112,930 Baht
(VAT included)

Weight : 70.0 kg

Buy via
Reserve via

Ask about restock or get notified via LINE

Brand country
EU
Weight
70.0 kg
Overload ProtectionShort Circuit Protection

Performance-oriented EasyPact MVS series Air Circuit Breaker (ACB) from Schneider Electric, equipped with an ETA6G electronic trip unit. Designed as a main breaker for large low-voltage electrical systems, rated at 2000 A with a high breaking capacity of up to 50 kA.

Share
  • SKU 234-MVS20N3MW6A
  • Estimated Delivery 1-3 days to ThailandShips
  • Shipping Rate calculated
  • Returns product within 30 days

Trust Site 100% safe and secure
- You can request a refund immediately.
- Request a refund if the product is not as specified.
- Products sent with track and warranty for every piece

Price {{xAttr.product_price | number : fractionSize }}  THB

Customers Also Viewed

Number of Poles 3P
Rated Current 2000A
Maximum Short-Circuit Current Rating 50 kA
Operating Voltage 690 V

SCHNEIDER MVS20N3MW6A Air Circuit Breaker ACB, Rated Current 2000A (50 kA)

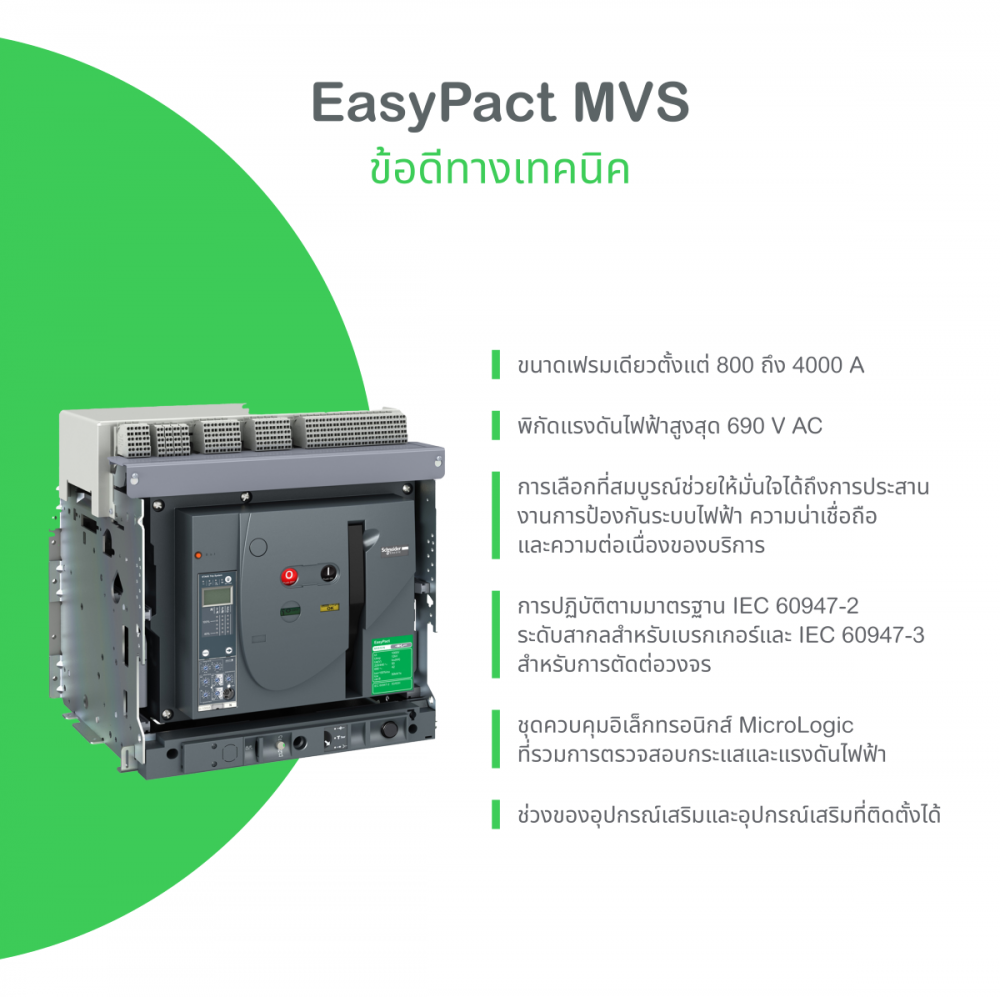

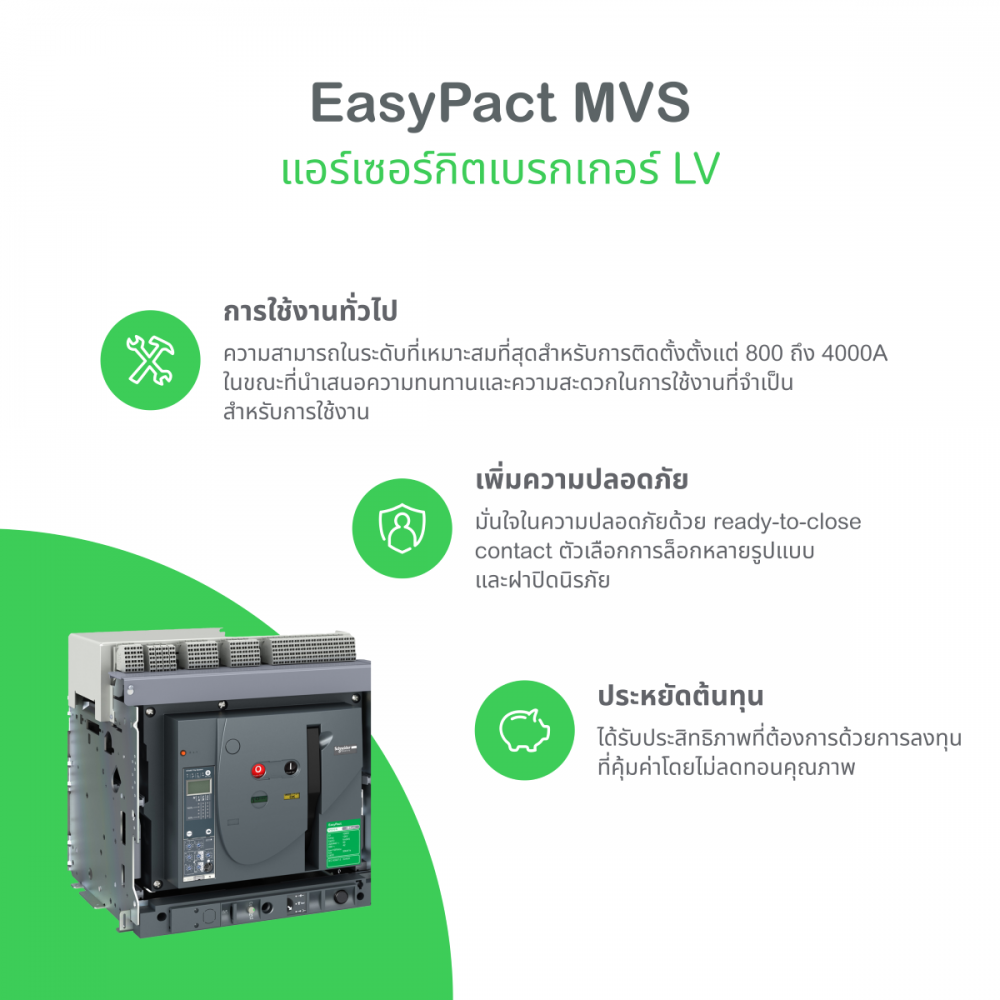

The EasyPact MVS air circuit breaker (ACB) from Schneider Electric focuses on performance and cost-effectiveness for the protection and control of large low-voltage power distribution systems. With a rated current of 2000 A (In = 2000A) and an ultimate short-circuit breaking capacity (Icu) of 50 kA at 440V AC, it features a drawout installation type and manual operation (Manual Operated - MDO). It comes equipped with an ETA6G (or ET6A) electronic trip unit offering comprehensive LSIG protection.

Features
- Ultimate short-circuit breaking capacity 50 kA, rated operational voltage 690 V
- MicroLogic electronic control integrating current and voltage monitoring
- Certified to IEC 60947-2 and IEC 60947-3 for circuit isolation and switching
- Draw-out design allows easy removal/replacement, minimizing system downtime
- ET6A electronic trip unit allows protection parameter settings for maximum selectivity.


Applications & Usage
- Used as a Main ACB or incoming breaker in switchboards for factories, large buildings, or commercial structures.
- Suitable for high-load systems requiring power supply reliability, such as main power distribution systems in factories, high-rise buildings, and hospitals
- Suitable for systems requiring complete protection functions, such as Overload, Short-circuit, and Ground Fault
- Industrial power distribution systems: Used to protect heavy-load circuits requiring high short-circuit withstand capability
Air Circuit Breakers ACB SCHNEIDER MVS20N3MW6A Rated Current 2000A  50 kA

Air Circuit Breakers ACB SCHNEIDER MVS20N3MW6A Rated Current 2000A  50 kA  Air Circuit Breakers ACB SCHNEIDER MVS20N3MW6A Rated Current 2000A 50 kA
