SCHNEIDER MVS16N3MW6A Air Circuit Breaker (ACB) 1600A 50 kA

234-MVS16N3MW6A

110,600 Baht

SCHNEIDER ELECTRIC SKU 234-MVS16N3MW6A ⧉
~ Installment 12,007 Baht / month × 10
In stock
Out of stock

Price 110,600 Baht
(VAT included)

Weight : 38.0 kg

Buy via
Reserve via

Ask about restock or get notified via LINE

Brand country
EU
Weight
38.0 kg
Overload ProtectionShort Circuit Protection

Performance-oriented EasyPact MVS series Air Circuit Breaker (ACB) from Schneider Electric, equipped with an ETA6 electronic trip unit. Designed as a main breaker for large low-voltage electrical systems, rated at 1600 A with a high breaking capacity of up to 50 kA.

Share
  • SKU 234-MVS16N3MW6A
  • Estimated Delivery 1-3 days to ThailandShips
  • Shipping Rate calculated
  • Returns product within 30 days

Trust Site 100% safe and secure
- You can request a refund immediately.
- Request a refund if the product is not as specified.
- Products sent with track and warranty for every piece

Price {{xAttr.product_price | number : fractionSize }}  THB

Customers Also Viewed

Number of Poles 3P
Rated Current 1600A
Maximum Short-Circuit Current Rating 50 kA

SCHNEIDER MVS16N3MW6A Air Circuit Breaker ACB, Rated Current 1600A (50 kA)

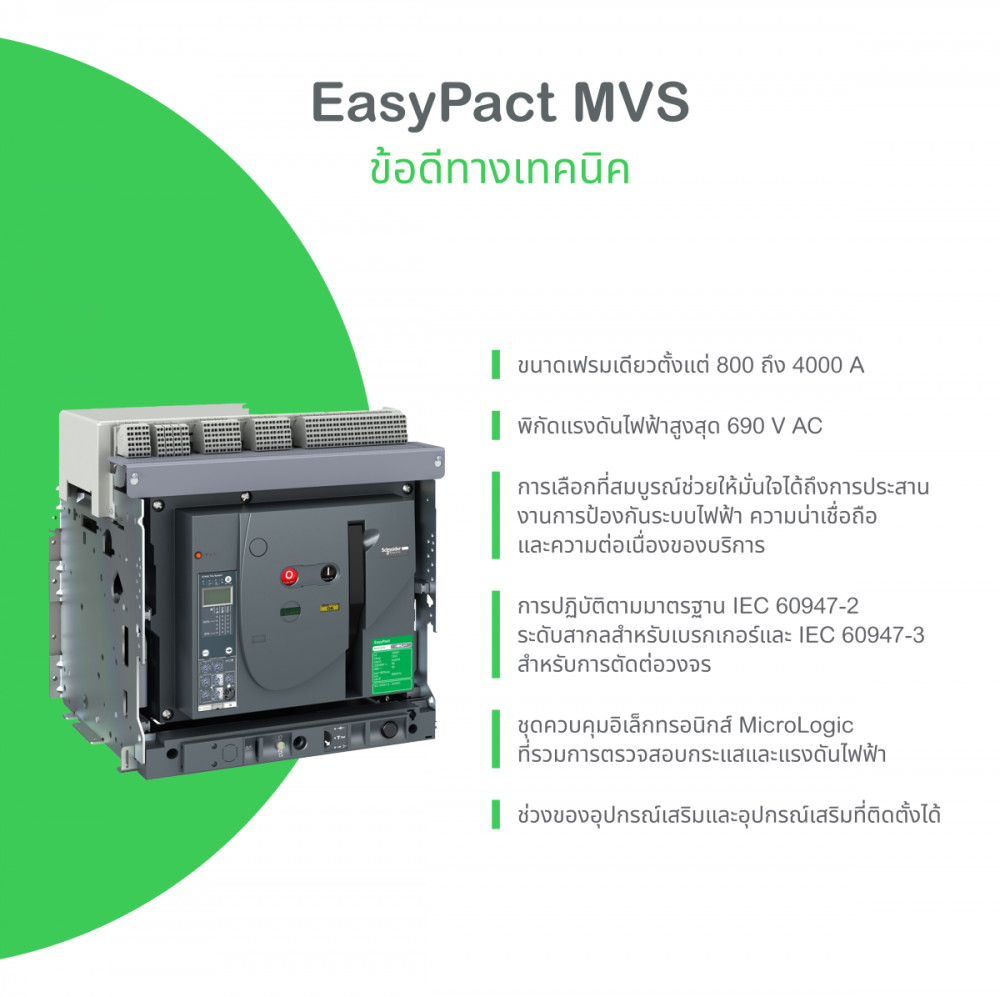

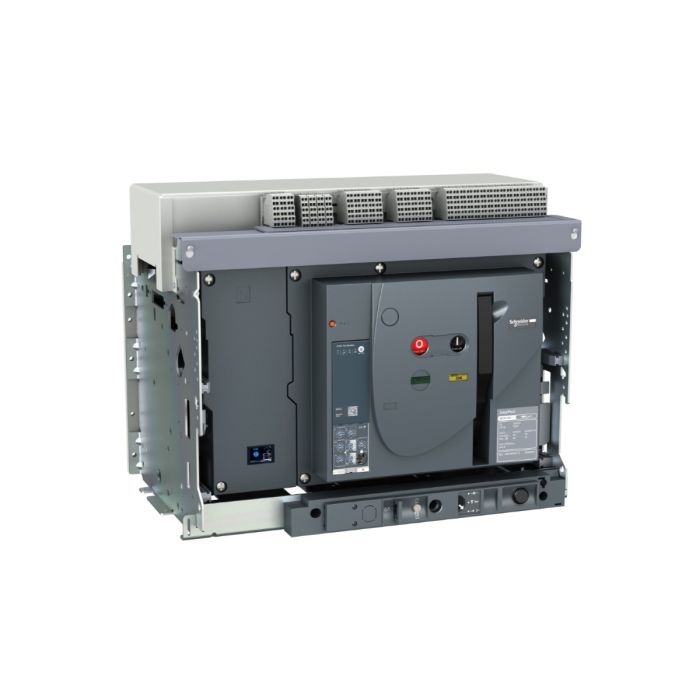

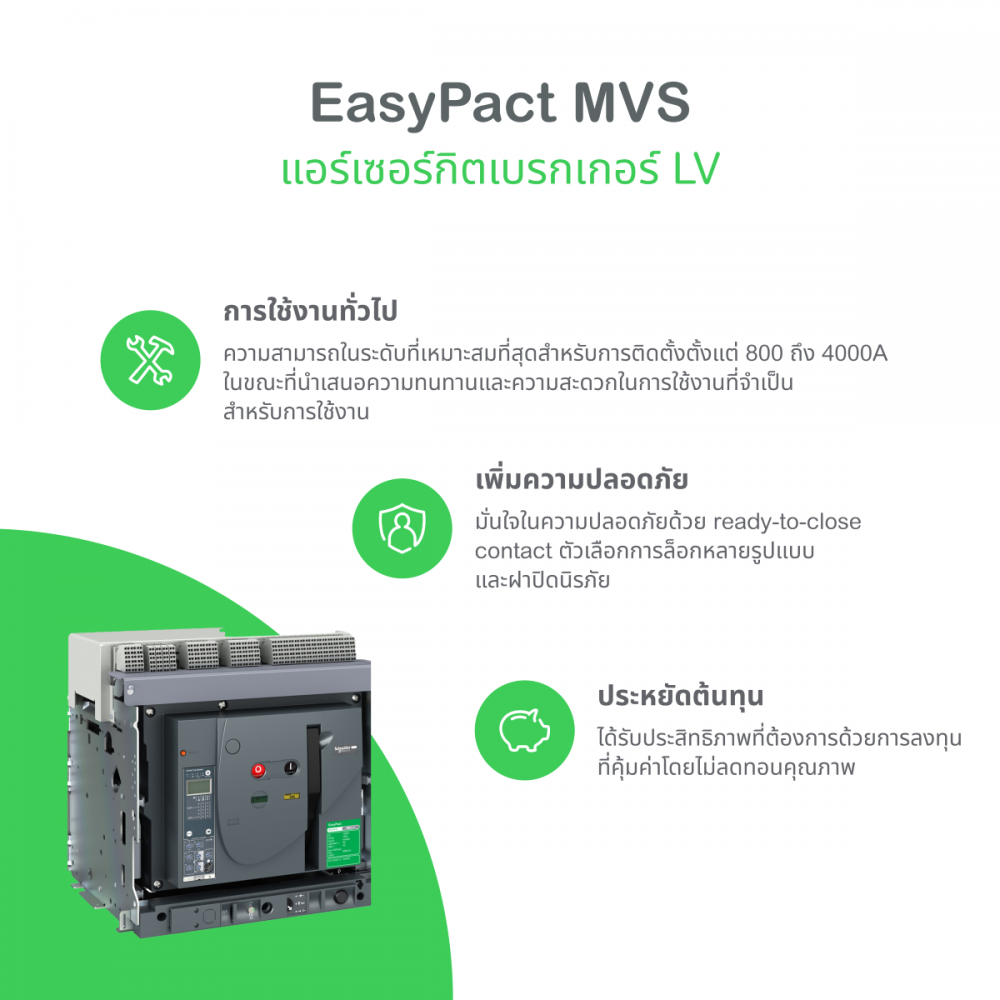

The EasyPact MVS air circuit breaker (ACB) from Schneider Electric focuses on performance and cost-effectiveness for the protection and control of large low-voltage power distribution systems. Rated current 1600 A, 3 poles (3P), drawout type installation (MDO - drawout, manual operation) with a standard short-circuit breaking capacity of 50 kA. It comes with an advanced ETA6 electronic trip unit providing finely adjustable LSIG protection covering overload, short-time short circuit, instantaneous short circuit, and crucially, ground fault protection — making it ideal for applications requiring maximum selectivity and safety.

Features
- Ultimate short-circuit breaking capacity 50 kA, rated operational voltage 690 V
- MicroLogic electronic control integrating current and voltage monitoring
- Certified to IEC 60947-2 and IEC 60947-3 for circuit isolation and switching
- Draw-out design allows easy removal/replacement, minimizing system downtime
- ET6A electronic trip unit provides highly flexible and accurate protection, including overload, short-time delay short circuit, and instantaneous short circuit protection.


Applications & Usage
- Used as a Main ACB or incoming breaker in switchboards for factories, large buildings, or commercial structures.
- Suitable for high-load systems requiring power supply reliability, such as main power distribution systems in factories, high-rise buildings, and hospitals
- Suitable for systems requiring complete protection functions, such as Overload, Short-circuit, and Ground Fault
- Industrial power distribution systems: Used to protect heavy-load circuits requiring high short-circuit withstand capability

Air Circuit Breakers ACB SCHNEIDER MVS16N3MW6A Rated Current 1600A  50 kA Air Circuit Breakers ACB SCHNEIDER MVS16N3MW6A Rated Current 1600A  50 kA Air Circuit Breakers ACB SCHNEIDER MVS16N3MW6A Rated Current 1600A 50 kA
