Ebara GS 125-200 Mechseal Pump 380V

73-E061-4725

53,080 Baht

EBARA SKU 73-E061-4725 ⧉
~ Installment 5,763 Baht / month × 10
In stock
Out of stock

Price 53,080 Baht
(VAT included)

Weight : 120 kg

Buy via
Reserve via

Ask about restock or get notified via LINE

Brand country
Japan
Weight
120 kg
High Volume
  • GS 125-200 Floating shaft pump without flange
  • Suitable for agricultural and industrial water pumping applications
  • High quality cast iron
  • Comes with a motor power of 110 Kw 150 Hp
  • Delivery height 36-62 m.
  • Voltage 380V
  • Impeller made from bronze
  • Ships in 1-3 days
  • Same Day · Bangkok area
  • Installment ~5,763 THB/mo
Share
  • SKU 73-E061-4725
  • Estimated Delivery 1-3 days to ThailandShips
  • Shipping Rate calculated
  • Returns product within 30 days

Trust Site 100% safe and secure
- You can request a refund immediately.
- Request a refund if the product is not as specified.
- Products sent with track and warranty for every piece

Price {{xAttr.product_price | number : fractionSize }}  THB

Customers Also Viewed

Product Details
Motor Power 110 KW 150 Hp
Suction Pipe x Submit 150 x 125 mm
Voltage 380V
Rotational Speed 2900,1450 rpm
Max. head 36-62 Moo
Electric Motor Poles 2 POLE, 4 POLE
size 39.5x62x57 cm
Flow rate 72-660 M3/HR
Pump casing material Cast iron
Impeller material Bronze (Bronze)
Floating shaft made of CR.steel
Mechanical Seal Material Silicon carbide/Carbon/FKM

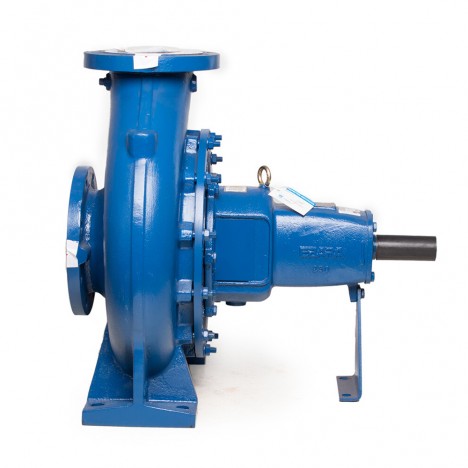

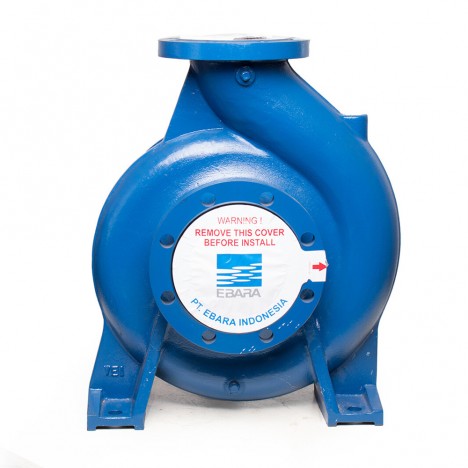

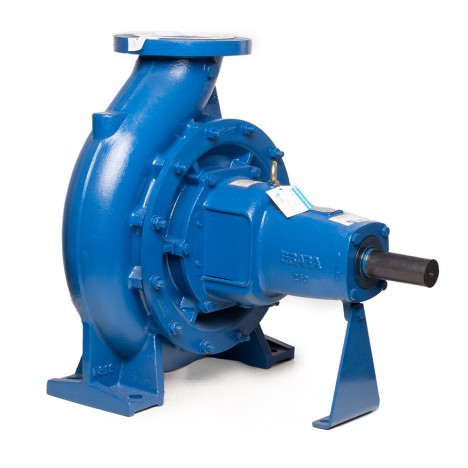

Ebara GS 125-200 Mechseal Pump
Ebara cast iron floating shaft centrifugal pump, model GS, mechanical seal (pump head only), produced according to EN733 (DIN 24255), DIN 16bar flange standard (not including flange), is the newest floating shaft pump from Ebara. that comes with many production technologies The propeller has a new 3D inverse design, increasing efficiency, reducing energy consumption, and making the spray paint more durable with a new style of spray painting. Electric spray system Cationiceletro-deposition painting is suitable for pumping work that requires a lot of pressure and water volume. Use with clean water Can be used in building, irrigation, and factory systems.

Feature
- Size 39.5x62x57 cm
- Suitable for use in agricultural water pumping. and industrial work
- Mechanical seals are made from Silicon. carbide/Carbon/FKM
- Comes with motor power 110 Kw 150 Hp
- Rotational speed 2900, 1450 rpm.
- High quality cast iron.
- Propellers made from bronze (Bronze)
- Flow rate 72-660 M3/HR



Centrifugal Pumps Unit Ebara GS 125-200 Flange not included
